Toplink Low cost MINI 150Mbps usb Realtek RTL8188ETV embedded wireless wifi module
The TOP-8188 is a tiny Wifi Module OEM with USB2.0 interface ane RF output, it supports IEEE 802.11b/g/n standards, This module operated in 2.4GHz ISM Frequency band with low power consumption;it applies a highly integrated MAC/BBP and RF single chip Realtek RTL8188ETV with 150Mbps PHY rate supporting.
1.Features:
1.Embeded 11n RTL8188ETV wifi module

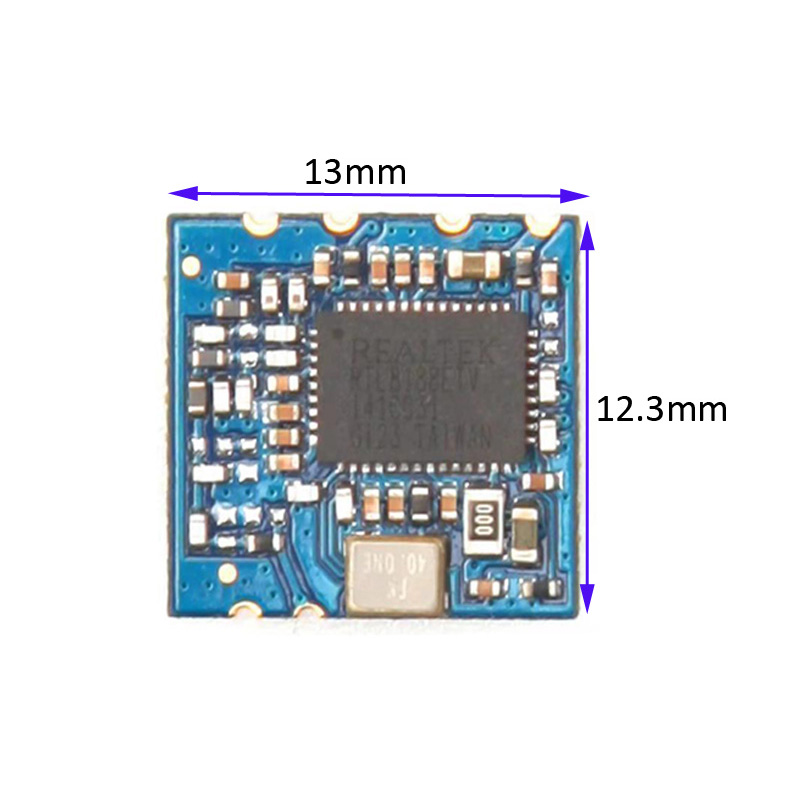

2.Mini Size 12.3X13 mm
3.Support WPS , Wi-Fi direct function
4.Support Soft AP and Client mode.
2.Application:
Application : Portable smart device: Mobile, Tablet, Mini-PC etc
Others: TV, Media player, set top box, IP camera, Camcorder etc.
Support OS, Windows 10/7/8 / Linux 2.6x / Mac / Android etc
Support WIFI Direct
3.General Sepcification:
| Feature |
Implementation
|
| Power Supply |
VCC 3.3V+/- 0.2V
|
| Clock Source |
400MHz
|
| Temperature Range |
Work Temp: -20ºC--70 ºC
Storage Temp: -55 ºC---125 ºC
|
|
Main Chipset
|
Realtek RTL8188ETV
|
|
Standard
|
802.11b/g/n |
|
Operation Mode
|
STA, Soft AP |
|
Operation Range
|
Up to 180 Meters in open air |
|
Interface
|
USB 2.0 |
