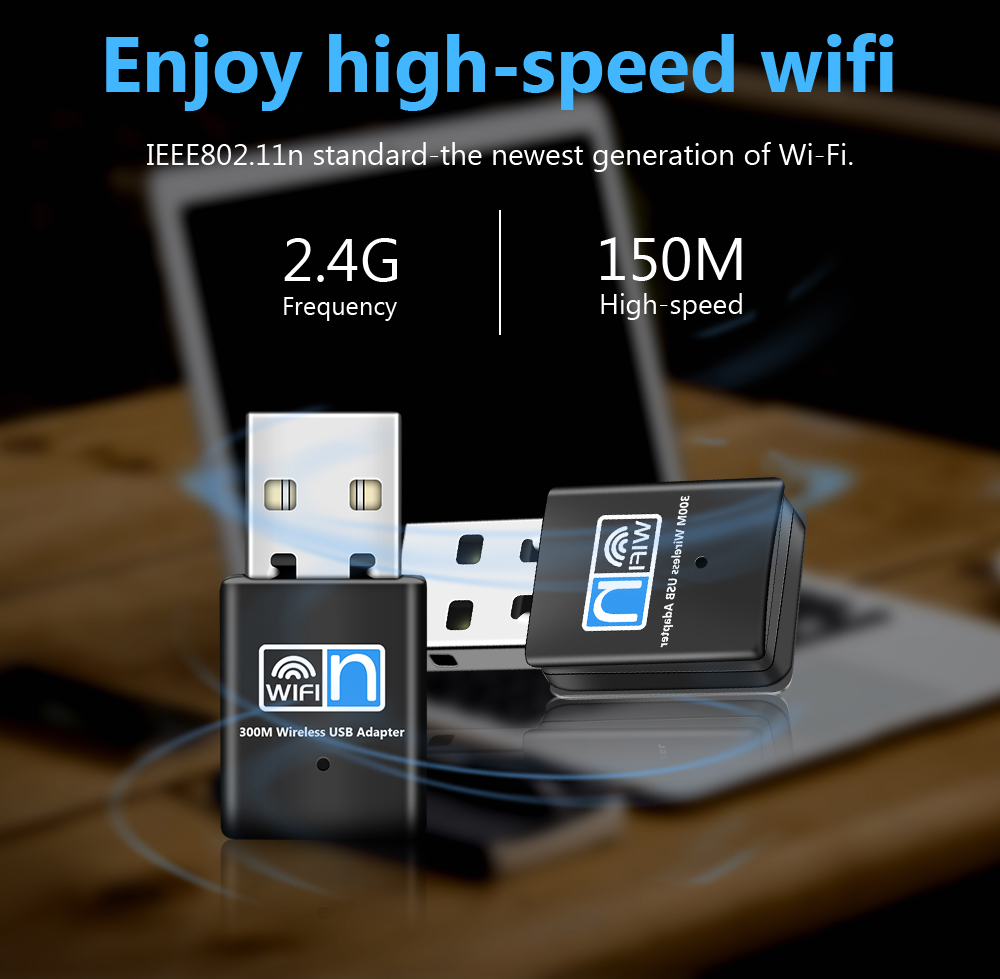

802.11n 300Mbps 2T2R Realtek RTL8192 USB 2.0 wireless adapter

802.11n 300Mbps 2T2R Realtek RTL8192 USB 2.0 wireless adapter 802.11n 300Mbps 2T2R Realtek RTL8192 USB 2.0 wireless adapter
Product name : 802.11n 300Mbps 2T2R Realtek RTL8192 USB 2.0 wireless adapter
Item : TOP-3505
Details :

802.11n 300Mbps 2T2R Realtek RTL8192 USB 2.0 wireless adapter

TOP-3505 is a 802.11n compliant wireless USB Adapter that provides up to 4x faster wireless speeds and 3x better wireless reception over 802.11g products while staying backward compatible with 802.11bg devices.
This wireless adapter features a sleek compact design that fits into your computer's USB port with minimal protrusion making it ideal for use when traveling or in a crowded work space.

The TOP-3505 connects your desktop or notebook computer with an available USB port to your wireless network for Internet access and file sharing. Desktop users can easily add wireless connectivity without having to open the PC case. Laptop users can easily upgrade to the latest 802.11n and get better range.
In addition, the wireless adapter supports advanced WPA/WPA2 security modes that ensure you will be able to share files and surf Internet within a secured connection. The Wi-Fi Protected Setup (WPS) feature enables devices to quickly establish a secure connection to an access point or wireless router,eliminating complex encryption codes.

It is designed for sharing your network wirelessly and delivering browse, email, play and work features.


Features:

  1. 300Mbps wireless transmission rate
  2. Provides two methods of operation: Infrastructure and Ad-Hoc
  3. Quick Secure Setup, complies with WPS for worry free wireless security
  4. Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
  5. Supports Sony PSP for online game
  6. Supports Windows XP/Vista/Win 7/Win 8/Linux/ MAC OS
  7. Seamlessly compatible with 802.11b/g/n devices
  8. Equipped with an elegant and stylish USB Cradle for flexible deployment


Parameters

Products Name:802.11n 300Mbps 2T2R Realtek RTL8192 USB 2.0 wireless adapter

Hardware

Chipset

Realtek RTL8192 , 2T2R mode

Host interface

USB2.0/1.1, type A ( 4 pin header)

LEDS

Link/ Activity

RF

Antenna

Built-IN-PCB antenna

Frequency

2412~2483.5 MHz, ISM band.

Transmit Power

20dBm(MAX EIRP

Receive Sensitivity

130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Software

Operation System

Windows CE/2000/XP/Vista/7/8/10; Linux 2.6.X; Android

Security

WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i

Cisco CCS V1.0, 2.0 and V3.0 Compliant

Operation Conditions

Voltage/Current Range*

DC 5.0V ± 5% / <145 mA

Operating Temperature

0°C - 50°C

Storage Temperature

-20°C - 70°C

Operating Humidity

RH 95% (Non-Condensing)

Storage Humidity

RH 95% (Non-Condensing)
