CE ROHS 802.11n Wi-Fi Receiver 150Mbps 2DBi antenna original new chipset WiFi Dongle MT7601 USB WiFi Adapter

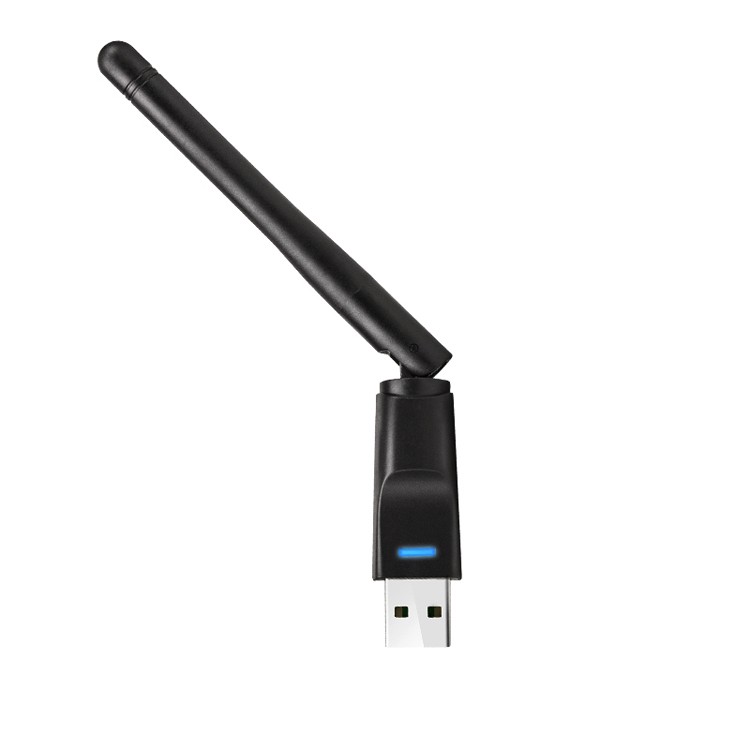

 TOP-7601 is a WLAN module supporting IEEE 802.11 b/g/n standards with 4-pin connector supporting USB 2.0 interface. This is a low cost compact WLAN module designed in the product with embedded system for the wireless connectivity.

TOP-7601 WLAN Module is designed to operate in 2.4GHz ISM frequency band, it applies a highly integrated MAC/BBP and RF single chip MT7601 with 150Mbps PHY rate supporting. It fully complies with IEEE802.11n draft 3.0 and IEEE802.11b/g feature.

Specifications:
Chipset MTK: MT7601
Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band:2.4GHz ISM (Industrial Scientific Medical) Band

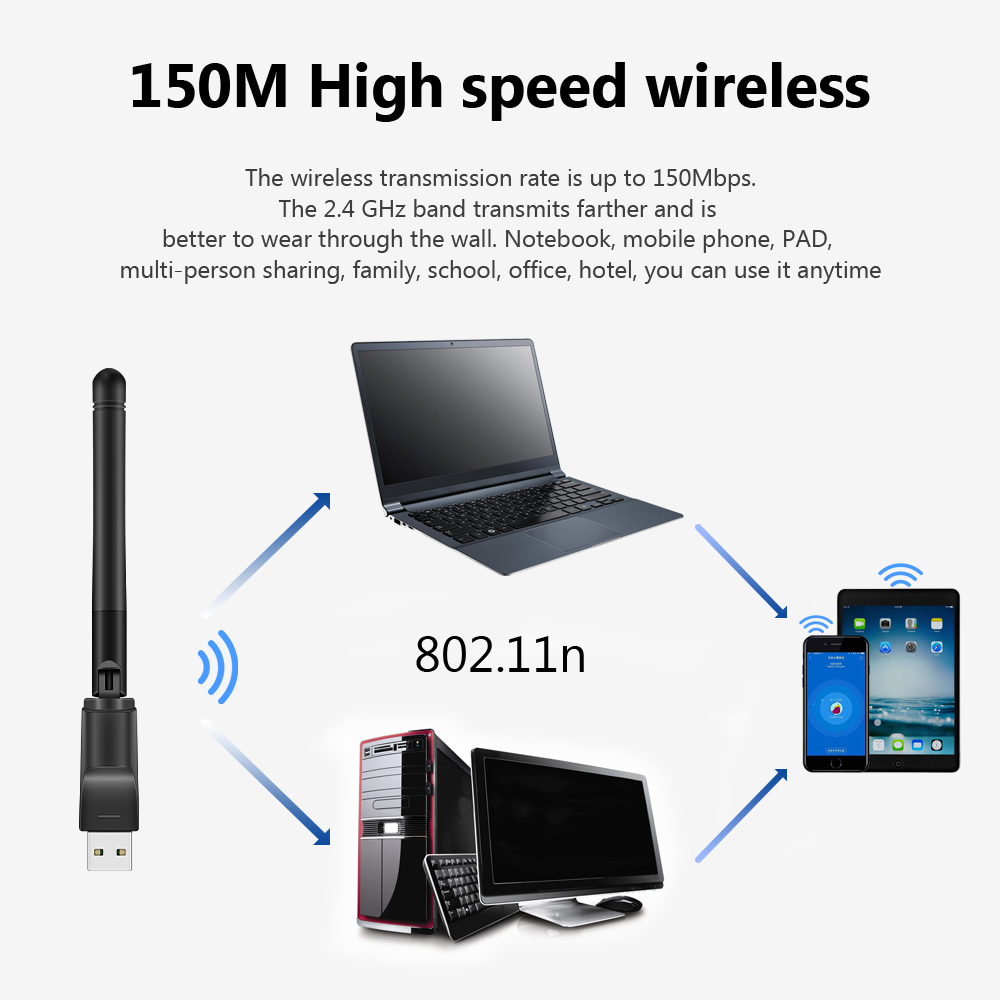

Peak Throughput:150Mbps
Channel:1--14 channels (Universal Domain Selection)
Data Security 16/128-bit WEP Encryption WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES
Support Operating System: Windows 2000, XP, Vista, Win7, Linux, MAC
Host Interface:High speed USB2.0/1.1 Interface

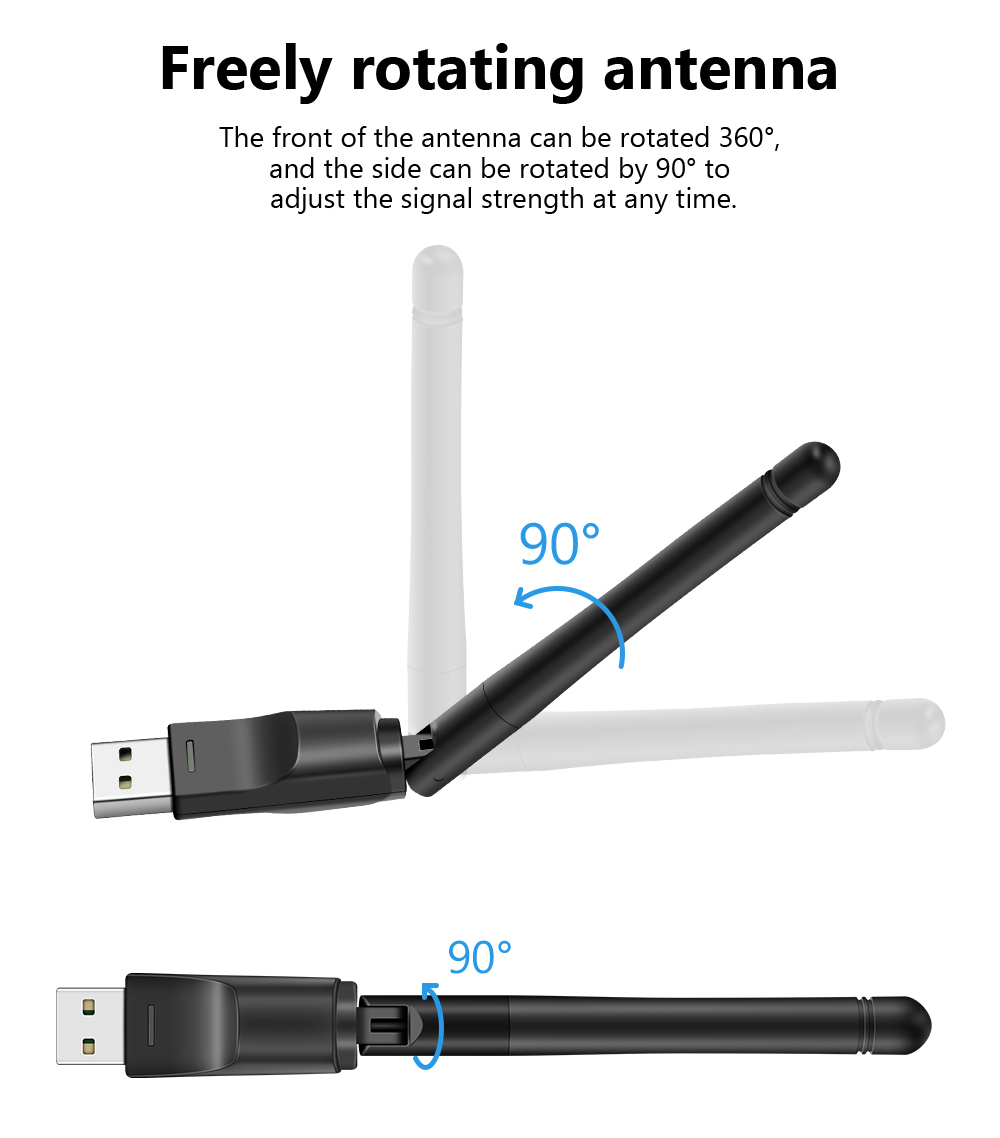

Antenna Gain:2dBi
Operating Temperature: 0oC - 40oC
Storage Temperature: -20oC - 75oC
Operating Humidity: 10% - 90% RH, (non condensing)
Storage Humidity: 5% - 95% RH, (noncondensing)
Package Size:14.8 * 9.8 * 1.8cm
Packed Weight:36g
